Automatic repeat, automatic
contest serial numbers
CW reverse sideband
Adjustable CW pitch
Detachable front panel
Backlit buttons
24 hour clock
CI-V control capability
13.8V DC
Current: Tx max 22A, Rx max
1.6A, Stndby 1.3A
Audio: 2W (8 Ohms)
Size: 167 x 58 x 180mm *
Weight: 2.3kg (approx.)
Supplied accessories: Hand mic, DC Power cable,
Spare fuses, Key plug, Electronic keyer plug, ACC cable

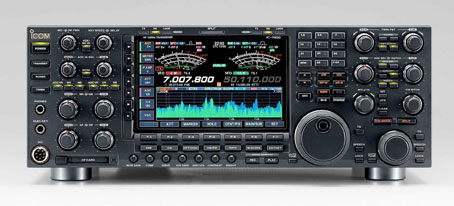

Icom IC-7800 HF / 50 MHz
All Mode Transceiver
Icom has been developing
radio communication equipment for over forty years. Its heritage has always
been based on technical excellence from the first analogue PLL circuit in
the IC-200, to the ground-breaking 32-bit floating point DSP of the
IC-756PRO. Ham radio stations increasingly use high power and high gain
antennas that raise the field strength of unintended signals, and thus
require a wider receiver dynamic range. Icom has developed the flagship
model IC-7800 which is a fusion of forty years analogue RF circuit
development expertise, with cutting edge digital technology. The result is
110dB dynamic range, +40dB 3rd order intercept point in HF bands and other
phenomenal performance features. The receivers combine various current and
new technology, to obtain the +40dBm IP3.
Four 32-bit floating point DSP units
+40dBm ultra high intercept point
Automatic tracking pre-selector
Two completely independent receiver
circuits
200W output power at full duty
Ultra high frequency stability
7-inch wide colour TFT LCD
Multi function spectrum scope
RTTY /PSK31 operation without PC
connection
IF notch filter with adjustable notch
filter characteristics
Professional 6m receiver
Digital Voice Recorder
CF (Compact Flash) memory card
Set mode function for flexible and
speedy setting
Memory pad stores up to 5 or 10
operating frequencies
Quick split function
Quick dual watch
SSB/CW synchronous tuning
Single knob control from squelch
volume to RF gain
RIT and Tx variable up to 9.999 kHz
UTC/Local Clock and timer function
1Hz pitch tuning and indication
101 memory channels with 10-character
comment
Built-in voice synthesiser announces
operating frequency, Mode and receiving signal strength.Programmed
scan, memory scan, select memory scan, VSC scan and F scan
Auto tuning step function
Dial lock
Main dial tension control
Band edge beep
CI-V interface capability
Optical digital input/output
BNC type Transverter connector
External speaker connectors for main
and sub receiver
Antenna line
High speed automatic antenna tuner
covers HF and 50MHz bands.
BNC type Rx In/Out connectors for
receiver antenna or external attenuator
General coverage receiver covers from
30kHz to 60MHz (* Some frequency bands are not guaranteed., Depends on
version.)
Two types of receive preamplifiers:
7-step attenuator (3/6/9/12/18/21dB
and OFF)
Twin peak audio filter for RTTY
operation
Low distortion RF speech compressor
Tx monitor
50 CTCSS tone encoder and decoder
VOX capability (Voice operated
transmission)
All mode power control
DSP controlled CW keying waveform
shaping
Multi-function electronic keyer with
adjustable keying speed, dot-dash ratio and paddle polarity
CW pitch control from 300 to 900Hz
The normal (default) CW carrier point
is selectable from USB and LSB mode.
Double key jack system
Full break-in function
Frequency lock function for split
operation
CW/AM auto tuning function

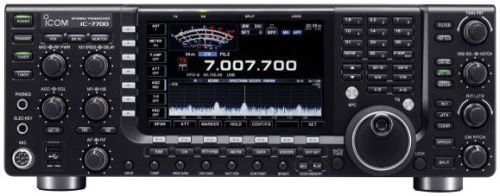

Icom IC-7700 HF / 50MHz
Transceiver
The IC-7700 HF/50MHz transceiver shares many features
with its big brother, the world famous IC-7800. With two independent DSP
units, a +40dBm 3rd order intercept point and ultra wide dynamic range to
name but a few of the features.
Two 32-bit floating point units
+40dB ultra high intercept point
Automatic tracking pre-selector
200W output power at full duty
Ultra high frequency stability
7-inch wide colour TFT LCD
Multi function spectrum scope
RTTY/PSK31 operation without PC connection
IF notch filter with adjustable notch
filter characteristics
Professional 6m receiver Soft and sharp IF
filter shapes for receiver
Reverse power protection circuit built-in
RS-232C port for PC connection
BNC type RF accessory connectors
Audio Peak filter for CW
Multi-function noise blanker
Advanced noise reduction and auto notch
Twin peak audio filter and tuning
indicator for RTTY
High speed automatic antenna tuner
Built-in Voice synthesizer
Optional IC-PW1 1kW Linear Amplifier
available
Digital Voice recorder

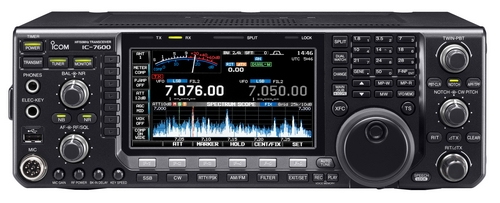

Icom IC-7600 HF / 50MHz
Transceiver
The IC-7600 HF/50MHz transceiver is enhanced with some of
the main features tried and tested on our flagship IC-7700/7800 models,
highly regarded by Amateur operators world-wide. Add over 45 years of
analogue RF circuit expertise and the result is the IC-7600, a new rig with
outstanding performance and a multitude of innovative features including a
newly employed double conversion superheterodyne system and dual DSP units
and 3kHz IF (roofing) filter.
Dual DSP for transmit/receive and spectrum
scope
104dB dynamic range, +30dBm 3rd order
intercept point in HF bands
Double conversion superheterodyne system
improves inband IMD characteristics
Two 32-bit floating point DSP units (One
for the transmit/receiver, one for the spectrum scope)
Three 1st IF (roofing) filters (3kHz,
6kHz, 15kHz)
5.8-inch ultra wide viewing angle TFT
display
High resolution spectrum scope
USB keyboard and USB flash drive
connection
PSK and RTTY encoder/decoder built-in (PC
and software is not required)

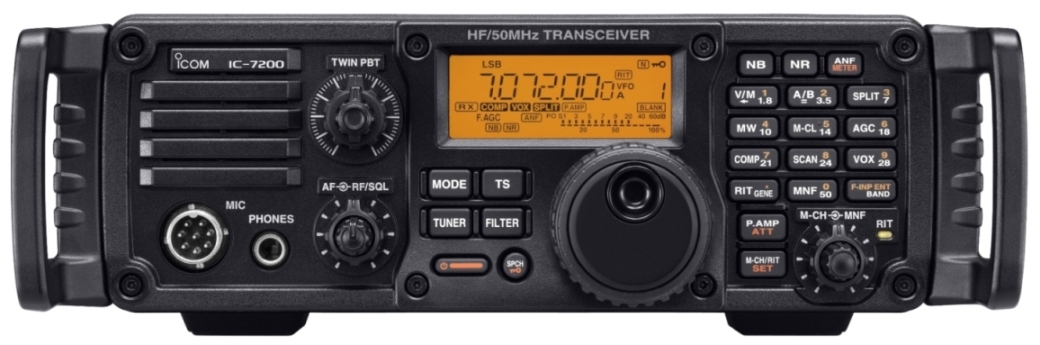

Icom IC-7200 HF / 50MHz
Transceiver
The IC-7200 HF/50MHz transceiver maintains all the traditions of high
quality engineering that you expect from Icom. Rugged in design and easy to
operate, the IC-7200 utilises the latest digital functions including digital
IF filter, twin PBT and manual notch filter which are normally associated
with more expensive models. The IC-7200 is ideal for field operation or at
home in your shack and is designed to be one of the most practical rigs
available.
IF DSP and digital functions built-in
Rugged outdoor build designed for field
operation.
Optional carrying handles are available to
aid portable use.
30kHz -60.000 MHz wideband coverage
AGC loop management controlled by DSP
Flexibly selectable filter width and shape
from soft and sharp
Manual notch filter delivers 70dB of
attenuation
USB port for CI-V format PC control and
audio in/out
DSP bandpass filter, auto
notch filter, noise reduction, mic equaliser
2.5W speaker
Built-in electronic keyer
CW trainer
VOX Automatic repeater shift
ARTS system
Spectrum scope
Bright LCD with multi-colour
display
DSP built-in
Detachable front panel
ATAS active antenna system
option
Upgrade with Collins
mechanical filters for SSB & CW option
Supply 13.8V DC, 550mA
squelched, 1A Rx, 22A Tx
Size 155 x 52 x 233mm / Weight
2.1kg
YAESU FT-450
The
ultimate compact HF/50 MHz transceiver
160m
- 6m
The FT-450 is a compact yet superb HF/50MHz radio with state-of-the-art
IF DSP technology configured to provide World Class performance in an easy
to operate package.
New licensees, casual operators, DX chasers, contesters, portable / field
enthusiasts, and emergency service providersThis
Radio is for YOU !
Built-in
Electronic Keyer
Speed
adjustable between 4 WPM and 60 WPM
Weight (Dot:Dash
Ratio) adjustable
CW T/R
Recovery Delay programmable from 30 ms to 3000 ms
CW Beacon
- Up to 118 characters using CW message keyers
3 memory
banks
CW Pitch
Adjustment (between 400 to 800 Hz, in 100 Hz steps)
CW
Spotting (Zero-Beating) function
CW
Reverse - provides BFO injection from LSB-side instead of default
USB-side
CW
Sidetone Generator
CW Keying
on SSB modes
CW Keying
using Up/Down keys on the optional microphones (MH-31A8J or MH-36E8J)
CW
Training feature sends random Morse Code via the built-in Sidetone
Generator
YAESU FT-450AT
The
ultimate compact HF/50 MHz transceiver
160m - 6m With ATU
(fitted)
Specifications as per FT-450 but with the
additional support of the ATU-450.
The Yaesu ATU-450 antenna tuner is designed exclusively for the Yaesu
FT-450. This automatic tuner mounts inside the bottom of the transceiver.
The impedance matching range is 16.5 to 150 ohms (up to 3:1 SWR).
Accordingly the ATU-450 should not be expected to match long wire
antennas. Please note that the ATU-450 cannot be used with the ATAS-120A. A
clicking sound during tuning is normal.
Specifications:
Coverage: 1.8 to 30 MHz and 50 to 54 MHz
Power rating: 100 watts PEP
Matched SWR: 1.5:1 or less
Tuning time: 5 seconds or less
Input impedance: 50 Ohms
Tuning power: 4 to 60 watts
Power Supply: 13.8 VDC (derived from the transceiver)
Size: 3.1 x 1.5 x 6.1 inches
Weight: 1.1 Lbs (500 g)

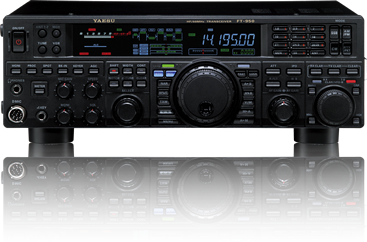

YAESU FT-950
The FT-950,
the newest radio in the direct lineage of the FTDX-9000 and FT-2000
series radios, has been developed to fit the needs of both casual and
serious DX enthusiasts, as well as new HF licensees eagerly seeking to
discover the magic of the HF and 50MHz bands. Prospective owners will
find that this radio comes in an appropriately-sized desktop package
that provides them with loads of easily located controls and features
to ensure they enjoy all of the excitement available on the 160
through 6 meter Amateur Radio bands.
Frequency Range:
Rx: 30 kHz - 56 MHz Tx: 160 - 10 Meters + 50 MHz
Operating Modes:
USB, LSB, CW, AM, FM
Power Output:
5 to 100 watts HF-6M
Supply Voltage:
Normal: 13.8 VDC
Case Size:
14.4in (W) x 4.5in (H) x
12.4in UK p&p 14
Weight (Approx):
28.7 lbs/13 kg
Speech Processing
Built-in Electronic
Keyer
Digital Noise Reduction
Built-in Antenna Tuner
YAESU FT-2000 ~ FT-2000D
The FT-2000 (100
watts) and FT-2000D (200 watts) are the 2nd Generation in the
proud lineage of the FTdx9000 Series! Featuring extensive DSP
filtering, factory installed antenna tuner and power supply and a host
of outstanding ergonomic and performance features, the FT-2000 series
radios are destined to be the centrepiece of your HF/50 MHz station!
1.8 -54MHz (160m-10m Amateur Bands) Tx
CW, AM, LSB, USB, FM, RTTY, PACKET
RF output power 5-100 W (AM: 2-25W)
30kHz - 60MHz Gen Coverage Rx
Dual Receive - two independent receivers Main & Sub
600 memories with scanning. Built-in keyer with
full QSK
CTCSS/PL for 10 m FM repeater access. Detachable front panel

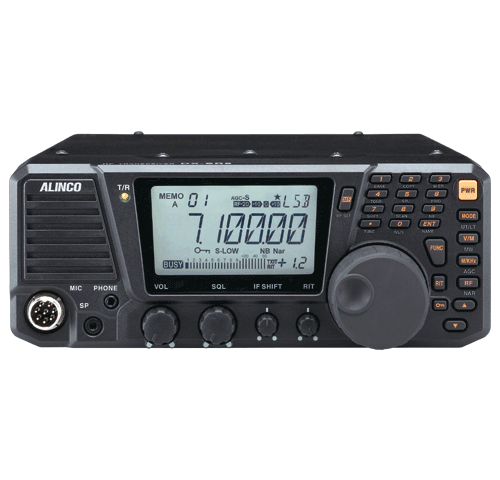

Alinco, a world leader in communications has developed a compact,
dependable and easy-to-operate HF transceiver. The DX-SR8 is an intuitive
design achievement, from its detachable front panel and front-facing speaker
to its logically laid out controls. The DX-SR8 is engineered to be a quality
transceiver, able to endure heavy-duty cycles and harsh operating
environments. There are many convenient features and a variety of setup
parameters that will enhance its performance under demanding operating
conditions. Alinco delivers high quality and superior value in the DX-SR8!
The
Albrecht AE-485S 10m AM/FM/SSB
Mobile/Base station transceiver. Designed for the now derestricted 10m band
over the range of 28.000 to 29.700MHz. Its an ideal transceiver for either
mobile or base station use. Use of the switches and buttons is straight

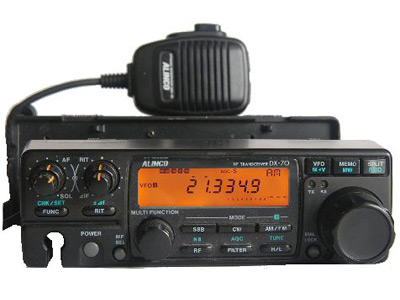

forward, including the FUNC switch which activates secondary functions of
most of the switches.
Prices and specifications are
correct at date of publication but subject to availability or change without
notice. Photos for illustrative purposes only - actual items may differ from
photo.
2013 Coastal Communications
UK - All rights reserved - Webmaster M0GWE
19 Cambridge Road
Clacton~on~Sea Essex CO15 3QJ
Frequency:
30kHz - 60MHz, 142 - 152MHz, 420 - 450MHz
