UHF / VHF Mobile

Amateur Radios

Icom     Kenwood    Yaesu

For price & availability, please email : sales@coastalcomms.org.uk

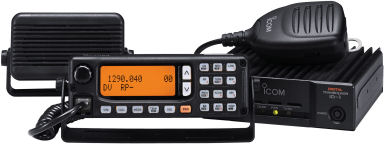

Icom ID-1 23cm DSTAR digital/analogue Mobile Transceiver

The ID-1 can operate in both Digital Voice and Digital Data Mode as well as conventionally with current analogue 1.2GHz repeaters. The ID-1 has an operating frequency range of 1240-1300 MHz, with FM and GMSK (Digital) modulation formats providing clear voice and high-speed data transmission (128kbps). The D-STAR digital repeater system allows you to relay the digital voice and data offering long distance communication capability through multiple repeater links and/or an Internet gateway relay.

PC Remote Controller Supplied The controller software is supplied with the ID-1. When the ID-1 is connected to a PC via a USB cable, most functions of the ID-1 can be controlled from the PC. In Digital Data mode operation, you can browse web sites and send and receive e-mail as if the ID-1 is a 10W wireless network adapter. * Ethernet port is required for Digital Data mode operation.
* Service may not be provided at repeater site.

Short message in DV mode Short messages of 20 characters max. can be sent in Digital Voice mode operation.

Useful Callsign Function The ID-1 has useful callsign function that embeds your own and the called station’s callsign in your transmission. When you input “CQCQCQ” as the intended station, you can make a CQ call in the area. The calling station’s ID is displayed on the received station and a newly received callsign can be automatically stored in the memory.

Digital Callsign Squelch (DSQL) & Digital Code Squelch (CSQL) The DSQL opens the squelch, only when your callsign is received. When you share a single callsign with a club or group members, the CSQL function allows you to set a CSQL code from 00 to 99 and provides quiet stand-by while other members are talking.

EMR Mode Operation When you require the attention of all stations in the area, the Enhanced Monitor Request (EMR) mode operation allows the caller to bypass the CSQL and DSQL setting of the receivers station. During EMR mode operation, all receiving stations will hear your audio, even though they may be muted.

Analogue FM Mode Operation The ID-1 also operates in analogue FM mode, allowing you to communicate with an analogue FM transceiver. In FM mode operation, the ID-1 has CTCSS tone squelch for quiet stand-by.

ID-1 Additional Features
• 950bps (approx.) data communication capability in Digital Voice mode
• 105 alphanumeric memory channels
• AFC (Automatic Frequency Control) function
• S-meter squelch
• Break-in communication Programmed, memory and select mode scan
• Stand-by beep
• Short Text Messaging
• Call Record, displays Calling stations
• Break function
• CTCSS encode/decode

Specifications
• Operate in both D-STAR Digital Voice and Digital Data Mode
• Works with current analogue 1.2GHz repeaters
• PC Remote Control
• Short message in DV mode
• Callsign Function
• Digital Callsign Squelch (DSQL) & Digital Code Squelch (CSQL)
• EMR Mode Operation (Emergency)
• 950bps (approx.) data communication capability in Digital Voice mode
• 105 alphanumeric memory channels

YAESU FTM-350E 2m/70cm transceiver Bluetooth GPS APRS 50/50W

The FTM-350E is a 2m/70cm transceiver from Yaesu with Bluetooth GPS APRS 50/50W.
* A Totally New Advanced Dual Band/Dual Receive Mobile Radio
* Two Separate Receivers with Individual Volume Control
* GPS / APRS® / Bluetooth® Features
* 144/430 MHz 50 W FM Dual Band Transceiver
* DTMF Microphone Included
* User-selectable multi-colour dot matrix display (detachable from main body)


Lots of Reliable Power Output 50 Watts of Reliable Power on both 2 m and 70 cm. Yaesu's renowned high quality Die Cast Aluminium Chassis design allows stable continuous high output power operation when you need it most.

Fantastic Large and Flexible LCD Display Incredibly flexible Dual Band Display. You can easily set your own individual preference for Dual Receive and Full-Duplex operation. 5.2"x1.6" (130x40 mm) Large dot matrix (264x64 dots) LCD display for comfortable viewing - night or day.
Numerous useful displays are available with the optional FGPS-1 GPS Receiver and Antenna. (Optional FGPS-2 External GPS Receiver and Antenna + CT-133 (cable) + CT-136 (adapter) are also available.)
Choose your favourite LCD display colour - 8 vibrant Colour Options!

Loads of APRS® Flexibility Complete with TNC and compatible with various APRS® information and functions - Receive WX info from other APRS® weather stations, exchange messages (max 67 characters using the APRS® function, etc.

Dual Speakers on Control Head Built-in Dual Speakers on the rear of the Control Head with Independent Volume Controls for maximum flexibility

Control Head Separation with Ease The Display Control Head is designed for easy separation from the main RF Power Unit - 10 foot control cable included. Optional 20 foot control cable available.

Band Scope High-speed Band Scope included for rapidly checking band activity.

Bluetooth® Capabilities The optional Bluetooth Unit (BU-1) provides hands-free radio operation with our Optional Bluetooth headset BH-1A (monaural) or BH-2A (Stereo).

SmartBeaconing™ Included SmartBeaconing™ from HamHUD Nichetronix is able to modify its own beacon rate in response to the motion of the vehicle. Since the APRS network has limited bandwidth, SmartBeaconing™ transmits an optimal amount of position information with a minimal amount of QRM to other network users - making FTM-350R users some of the most "efficient" on the network.
Read more about this very useful feature at http://www.hamhud.net/hh2/smartbeacon.html

Cross-Band Repeat Capability For emergency work, or to extend the range of a hand-held unit, the FTM-350R includes Cross-Band Repeat capability.

Huge Memory Channel Management Capability! 500 Independent memory channels with memory name tag function (up to 8 characters) for each L and R band (1000 channels total), + 9 PMS (Programmable Band Limit Memory Scan) channels for each L and R band (18 channels in total), + a rewritable preferred channel for each L and R band, + 31 channels specifically allocated for the Smart Search function

Special Features when communicating with FTM-350R & VX-8R/DR Transceivers Able to display your friends APRS® stations (FTM-350R and VX-8R / DR) directions, distances and other information in relation to your location.

Packet Compatible 1200 / 9600 bps packet port (8-pin mini DIN)

Wideband Receive
L-band: 0.5 MHz – 1.8 MHz (AM Broadcast band)
76 MHz – 108 MHz (FM Broadcast band)
108 MHz–250 MHz / 300–1000MHz
R-band: Amateur R

Listen to FM Broadcast Stations in Stereo Built-in stereo decoder for FM Broadcast: Listen to FM Broadcast in Stereo with dual speakers on the rear of the control head!

Optional FPR-1 Monitor Unit receives your transmission out to about 1,000 ft (300 m) depending on transmit power and other conditions. Give to others to hear your transmissions during emergencies, special events, and so many other operations so that they can follow the situation.

DTMF Microphone Included The front panel Built-in Microphone activates PTT transmission. A MH-48A6JA / conventional hand microphone with DTMF is also included with the radio.

DTMF Autodial (Memory) with 16 digits/9 memories.
"Line In" input permits playing your favourite stereo music from other devices.

Barometric Pressure Sensor Built-in Barometric Pressure Sensor; the radio can monitor and display your altitude (with optional GPS unit) and pressure

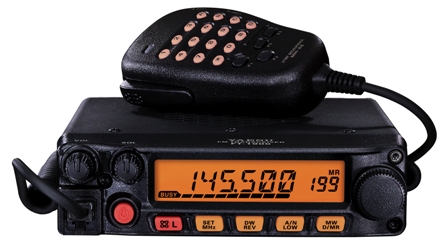

Large LCD Display The large 6 digit backlit LCD on the FT-1900E ensure excellent visibility

Loud Audio with Internal Speaker The FT-1900E packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Extended Receiver Coverage The FT-1900E provides receiver coverage of 136-174 MHz, so you can listen in on a wide variety of commercial, military, public safety, and marine communications.

Illuminated Microphone with Keyboard Frequency Entry The supplied MH-48a6j DTMF Microphone is illuminated for ease of nighttime use, and you may enter operating frequencies directly from the keypad. What's more, memory channels may also be recalled directly via the keypad.

200 Memory channels with Alpha-numeric Labelling The FT-1900's extensive memory system includes 200 regular memories, ten pairs of band-limit memories, 8 memory banks, and a one-touch "Home" channel. Memory channels store repeater offset information, as well as CTCSS or DCS data, and can have a six-character label appended, for quick channel recognition. And the memories may be allocated into as many as eight memory banks, for more efficient scanning.

Programmable Four user-programmable "soft" keys are provided on the MH-48a6j microphone, allowing you to bring often-used Menu items, or front panel key functions, to your fingertips.

Built-in CTCSS and DCS Encoder/Decoder Circuits The FT-1900E includes both CTCSS and DCS Encoder/Decoder circuitry, with Reverse CTCSS Decoding also available, to mute your receiver when a particular tone is received (instead of opening your squelch). And you can encode CTCSS and decode DCS, or vice versa, too, if your application requires it.

Adjustable Mic Gain and Wide/Narrow Deviation and RX Bandwidth The microphone gain for the FT-1900R's transmitter is adjustable, so you can optimize it for your voice level as well as background noise in your operating location. And for operation in crowded channel environments, the TX deviation and RX bandwidth may both be reduced via the Menu.

Automatic Repeater Shift (ARS), Automatic Power-Off (APO), and BCLO (Busy Channel Lock-Out)
ARS: Automatically selects the typical repeater shift used in your country, based on the current operating frequency.
APO: Automatically turns power off after a user-defined time period, to prevent you from running down your car battery if you forget to turn your rig off.
BCLO: Prevents you from transmitting on an occupied frequency (especially valuable during Tone Squelch or DCS operation).

CW Trainer You can practice your Morse Code recognition, using this novel trainer that sends you five-character code groups, with variable speed and instant feedback as to the correct characters sent to you.

Security Password to Prevent Unauthorized Use A defeatable (by the owner) Security Password system is provided for the FT-1900E, so you can limit operational access to yourself and any other users (if any) informed of the password for the transceiver.

Easy Access to YAESU's Renowned WiRES-II™ Internet Linking Nodes A front panel key provides instant access to WiRES-II nodes. More information about WiRES, Yaesu's exciting and fun way to communicate via Amateur Radio AND the Internet, may be found at the WiRES-II Web site: http://www.vxstd.com/en/wiresinfo-en

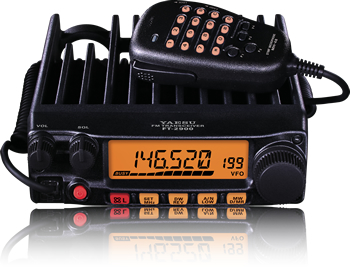

YAESU FT-2900E 2m 75W Mobile Transceiver

Large LCD Display The large 6 digit backlit LCD on the FT-2900E ensure excellent visibility

Loud Audio with Internal Speaker The FT-2900E packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Excellent Receiver Performance The FT-2900E’s receiver front end features Yaesu’s renowned Advanced Track Tuning RF input filtering, which affords outstanding protection from Intermodulation distortion.

CTCSS and DCS Encode/Decode Built In For easy repeater access, or silent monitoring of busy channels, both CTCSS and DCS (Digital Code Squelch) Encoder/Decoder circuits are built in. CTCSS and DCS configuration data may be stored independently in each memory channel. A “Split Tone” mode also allows operation on systems where CTCSS and DCS are used separately on the repeater uplink/downlink.

Extensive Memory System The FT-2900R provides a total of 221 memory channels, including 200 “regular” memories, ten pairs of band-limit memories, and an instant-recall “Home” channel you can dedicate to a frequently-used repeater or simplex frequency. Memories can store repeater shift information, CTCSS/DCS data, power output level, scanning status (“Skip”), and Alpha-Numeric labels.

Alpha-Numeric Channel Display Memory channels may be displayed either with the channel frequency or a personalized Alpha-Numeric label, for easy channel recognition. Up to six letters, characters, or numbers may be used for labeling channels.

WIRES Internet Linking Access Feature The FT-2900R includes a conveniently-located “Internet” key, for quick access to Internet-linked repeater systems. Internet repeater linking allows you to use your FT-2800M to talk to other Amateurs throughout the world, with outstanding voice signal quality. The “Internet” key may be configured to send either a single DTMF digit, or a DTMF string, for operation on a WIRES™ (Wide-Coverage Internet Repeater Enhancement System) repeater, or on other Internet-linked repeaters using DTMF tone access. For more information on WIRES™, please visit our Web site (www.yaesu.com), or send an e-mail to WIRES@vxstdusa.com

MH-48A6J DTMF Direct Access Microphone The backlit MH-48A6J microphone allows direct keypad frequency entry, or keypad memory channel recall. On transmit, the MH-48A6J allows manual entry of DTMF tones for autopatch use, and the FT-2900E also includes a nine-memory, 16-digit DTMF Autodialer. Four user-programmable “soft” keys on the microphone may be programmed for easy control of a number of different features, and the keys replicate the functions of the keys on the front panel of the transceiver, for maximum convenience while driving.

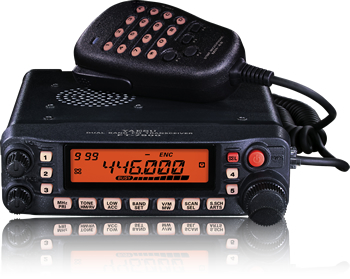

YAESU FT-7900E 2m/70cm 50/40W FM Mobile Transceiver

High Power Output Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7900R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too

Wide Receiver Frequency Coverage The FT-7900R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!

Large LCD Display The large backlit LCD on the FT-7900R ensure excellent visibility

One-Touch Five front panel keys allow complete transceiver configuration status to be stored for convenient one-touch recall. So you can set up favourite frequencies in each operating band, including the receive-only bands, and then recall them with a single touch of a button!

Over 1000 Memory Channels The FT-7900R’s incredible memory channel capacity includes registers for over 1000 channels, each capable of storing a 6-character Alpha-Numeric label. And the memories may be stored in any of the 20 available memory groups; a particular memory channel may also be stored in multiple groups, if desired.

YSK-7800 Remote Mounting Kit (option) Using the optional YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7900R’s front panel on the vehicle’s dash board, then stow the radio’s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.

WiRES™ Internet Linking Capability The FT-7900R’s DTMF signalling capability includes provision for easy access to Yaesu’s WIRES™ (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.
