AirNav RadarBox is the closest you can be to real world
aviation without leaving your chair thanks to next generation Radar
decoding. By decoding ADS-B (Automatic Dependent Surveillance Broadcast)
radar signals, you will be able to see on your computer what
real Air Traffic Controllers see on their screens in Real-Time.
Flight number, aircraft type, altitude, heading, speed are all updated
each second. Included is the award winning software interface
developed by the world's leader in flight tracking and monitoring
solutions, AirNav Systems.
AirNav 2009

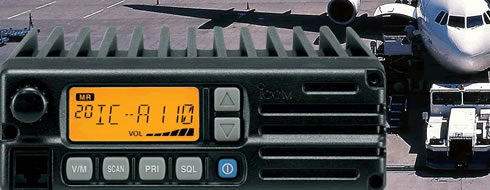

IC-A110 EURO Mobile/Base VHF Air Band
Transceiver
Extremely robust and capable of working in extreme conditions (-30C - +
70C)
20 memory channels available (7-character memory display)
Limited number of keys for ease of use
Uses both 25kHz & 8.33 kHz spacing
Front mounted speaker for clear audio
Conveniently sized for most vehicles

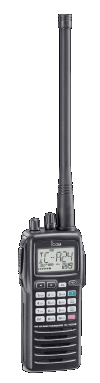

IC-A24EIC-A6E
VHF Air Band Hand Portable
Transceivers
Portable VHF VOR/COM Transceiver
Two versions of each model are available. 'Sport' Pack and 'Pro' Pack.
Compact, stylish design
New channel recall function
VOR navigation function (IC-A24 only)
Dedicated 121.5MHz Emergency key (Programmed with 121.5MHz homing
frequency)
Water resistant (equivalent to IPX4)
Simultaneous operation and charging from an external power source
200 alphanumeric memory channels with memory banks
Side Tone function
ANL function
Battery packs and cases are compatible with Icom’s range of commercial
radios.
Frequency (TX/RX) 118.00MHz - 136.975MHz
Frequency (RX) 108.00MHz - 117.975MHz (IC-A24E)
RF Power 5WPEP (1.5W carrier)
Dimensions: 54 x 129 x 35.5mm
Weight: 430g
Sport Pack includes:
Pro Pack includes:
BP-208N Battery Case (6xAA)
BP-210N Battery Pack (Ni-MH 7.2V/160mAh)
CP-20 Cigarette Lighter Cable with DC-DC conv.
OPC-499 Headset Adapter Cable
MB-103 Belt Clip
BC-119 Desk Top Charger
FA-B02AR Antenna
CP-20 Cigarette Lighter Cable with DC-DC conv.
FA-B02AR Antenna
IC-A24PRO
IC-A6PRO
IC-A24SPORT
IC-A6SPORT
These are dedicated VHF air
band transceivers with full UK CAA approval. They can only be used by licensed
pilots.
The IC-A24PRO/SPORT covers all
the VHF civil nav and com channels, and the IC-A6PRO/SPORT only the com
channels.
Prices and specifications are
correct at date of publication but subject to availability or change without
notice. Photos for illustrative purposes only - actual items may differ from
photo.
